How to Fit a Perfectly Level Shelf on an Uneven Wall

Is your wall uneven, yet you want a shelf that is perfectly level? Professional fitters share their techniques for achieving flawless alignment.

A practical feature found on an online DIY website explains how professional fitters install a completely straight shelf, even on a wall with significant imperfections. This is especially relevant to homeowners in the UK, where many older properties have walls that are far from flat.

A common issue in older homes

Bulging walls, corners that are not square and uneven plaster: according to the professionals quoted by the website, imperfect surfaces are commonplace in many buildings, particularly older ones. When fitting a shelf, these flaws quickly become obvious: boards appear slanted, gaps open at joints and objects can slide.

The experts point out that relying on the wall alone is the usual mistake:

“The wall is never the reference point. The only reference is the level you want the shelf to achieve.”

In other words, rather than following the surface imperfections, the professional approach is to establish a perfectly straight plane, then adapt the fixings or finishing details to visually absorb any discrepancies.

First step: select the right level reference

Before taking out the drill, fitters stress the importance of measuring carefully and choosing the correct checking tool. A spirit level, laser level or long straightedge will all affect the accuracy of the result.

Spirit level or laser level: what the professionals advise

The professionals consulted by the specialist publication favour a laser level for very uneven walls, since it projects a reference line independently of the surface. For a smaller task, or if this equipment is unavailable, a long spirit level used with a builder’s straightedge remains a sound option.

• A laser level lets you mark the entire installation line in one go.
• A spirit level requires checking each point separately, but is sufficient for a small shelf.
• A long straightedge, or a genuinely straight timber batten, helps to visually smooth out high and low points.

The tradespeople quoted advise checking the level at no fewer than two widely spaced points, then joining them with a perfectly horizontal line drawn using a fine pencil.

Drawing a straight line on an uneven wall

Once the tool has been selected, the fitters follow a highly methodical process. It is based on one straightforward principle: the marked line should not follow the wall’s defects, but instead show the shelf’s true horizontal position.

1. Select the desired finished height on either the left- or right-hand side.
2. Transfer this height to the opposite side, relying solely on the level.
3. Draw the installation line by joining the two points that are exactly level.
4. Check the line repeatedly in several locations before drilling.

Professionals also suggest stepping back a few metres to assess whether the line looks consistent with the room’s other reference points, such as a base unit, worktop or window frame. This helps prevent an overly striking visual contrast where the floor or ceiling is also noticeably out of true.

“The eye always compares the shelf with other lines in the room. The aim is overall consistency, not isolated geometric perfection.”

Fixings: correct local gaps, not the overall line

After establishing the level line, fitters deal with each fixing point individually. Since the wall is irregular, wall plugs will not all sit at the same depth and the shelf bracket will not lie flat everywhere in the same way.

Pack out the bracket rather than force it against the wall

The experts quoted by the DIY website advise against overtightening screws to “crush” a bracket into hollows or against protrusions. Doing so can distort the structure, weaken the wall plugs and throw the shelf out of alignment.

Instead, they recommend using small packers:

• hardwood or plastic packers cut to size;
• washers in different thicknesses for millimetre-precise adjustment;
• thin plywood pieces to fill a substantial hollow.

The rule remains unchanged: the shelf must follow the level line exactly. The wall is then compensated for locally with packers, ensuring that the bracket stays straight.

“You do not try to bend the shelf so that it follows the wall. You adjust the wall to the shelf, point by point.”

Making imperfections disappear: finishing techniques

A level shelf against a crooked wall can sometimes leave visible gaps. Professionals describe several ways of making them less noticeable.

Sealant, trim and deliberate shadow gaps

According to the fitters consulted, DIYers can choose between three approaches:

Solution	Principle	Recommended use
Acrylic sealant	Fill small gaps with paintable sealant	Narrow gaps, painted wall
Trim strip or quadrant moulding	Conceal a wider gap with a decorative piece	Major irregularities, traditional style
Deliberate shadow gap	Leave a clean recess between wall and shelf	Contemporary interiors, intentional linear effect

Fitters explain that acrylic sealant is generally preferred for minor irregularities because it is easy to paint and accommodates slight wall movement. Trim is more suitable for fitted bookcases or bespoke storage where an integrated finish is wanted.

Adapting the method to different shelf types

Professionals differentiate between several situations, because a lightweight board and a bookcase loaded with books do not require imperfections to be managed in the same way.

Floating shelves, brackets and twin-slot shelving systems

With so-called floating shelves, or shelves mounted on discreet metal supports, adjustment is often made at the hooks or rods. Some models offer fine vertical adjustment, which is particularly useful on uneven walls.

Metal twin-slot shelving systems, comprising vertical rails with multiple slots, demand even greater precision. Fitters recommend aligning them with the laser level rather than with the wall edges. The brackets can then be clipped onto a precisely established plane.

For boards fitted on ordinary angle brackets, the key requirement is for the tops of the brackets to be even. Tradespeople carefully verify the alignment of their upper edges before finally tightening the screws.

What professional fitters use every day

In the UK, carpenters, fitted-furniture installers and drylining specialists apply these same principles to interior projects. Whether they are fitting cupboards in an old stone house or installing shelves in a period flat, they regularly encounter walls that are not flat.

“Older homes rarely have floors, ceilings and walls that are perfectly plumb. The job is to make those defects disappear from view.”

Professionals also select wall plugs and screws according to the wall construction, whether it is hollow brick, concrete block, solid concrete or plasterboard. Unsuitable drilling can compromise a shelf’s holding strength, even when its level is impeccable.

UK readers can refer to advice guides published by major DIY retailers, which repeat these recommendations: check the level independently of the wall, mark out meticulously, pack out locally and complete the work with careful finishing.

Precautions before loading the shelf

Finally, professional fitters emphasise safety and long-term durability. A shelf that is perfectly level but undersized or poorly fixed is still hazardous.

Assessing the load and the supporting wall

Before installation, tradespeople estimate the intended load: books, crockery, files or decorative items. This assessment determines the choice of:

• board thickness;
• support type, such as floating fittings, brackets or twin-slot shelving systems;
• number of fixing points;
• diameter and type of wall plugs.

They also recommend a simple check once the shelf is fitted: add weight gradually, watch for any bending and inspect the fixings again after a few days, particularly on lightweight partition walls.

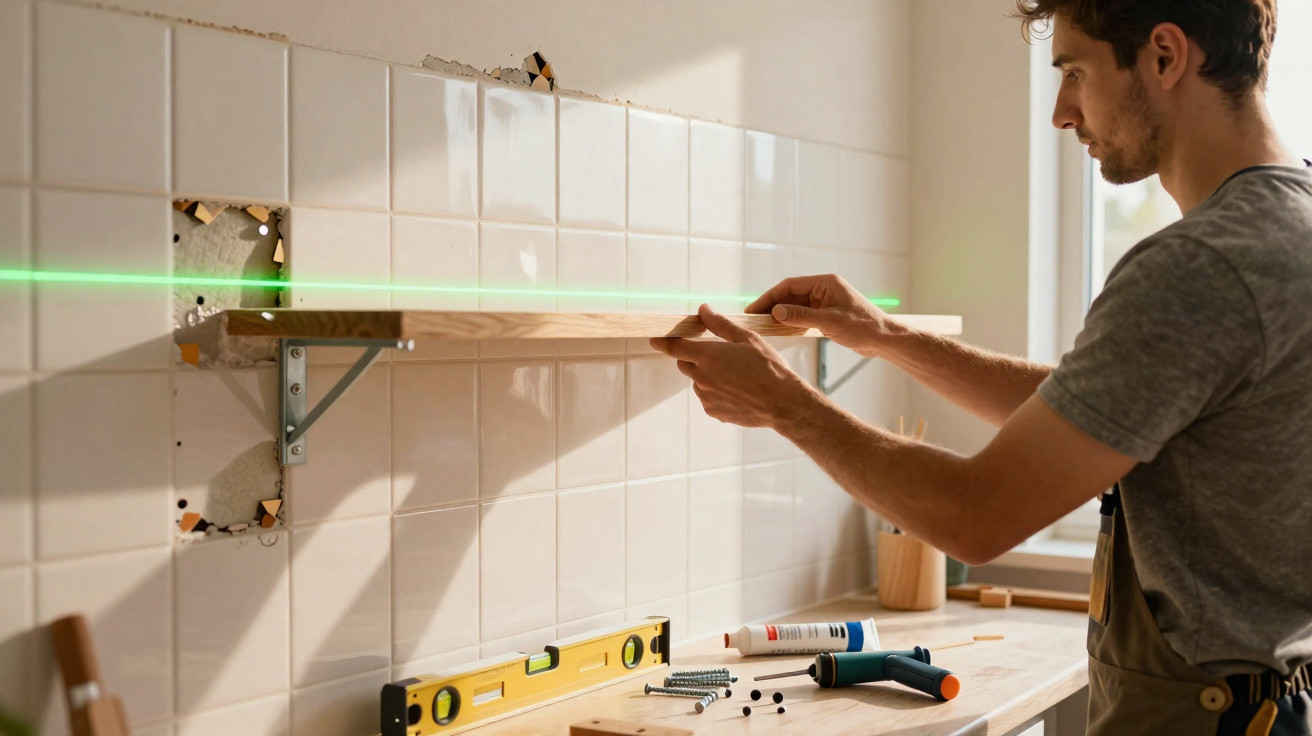

A typical case: a kitchen shelf on uneven tiles

The most challenging situations often arise in kitchens, where wall tiles accentuate surface defects. The professionals quoted explain that the same principle applies, with several particular considerations:

• use hammer action sparingly when drilling to avoid cracking tiles;
• carefully identify tile joints, which do not always correspond with a solid backing behind them;
• place discreet packers behind brackets to compensate for tiles that protrude more than others.

In this situation, silicone or acrylic finishing sealant has an important aesthetic role, concealing the unavoidable tiny flaws between the tiles and the shelf edge.

Why these techniques are useful beyond shelves

The methods described by the fitters are not limited to shelves. They can also be used when fitting curtain poles, picture rails, lightweight cornices or sliding wardrobe tracks. Each time, the principle is to create an independent straight reference, then adjust the existing support around it.

For a homeowner in the UK, understanding this approach makes it easier to tackle any DIY project on an imperfect wall with greater confidence. The challenge is not simply drilling or screwing: it lies in anticipating the irregularity and making it invisible once the work is complete.
