Insulating Roller Shutter Boxes: Save up to 20% on Heating Energy

If you can feel a cold draught by the window in winter even with the heating turned up, poor glazing or leaky frames are usually the first suspects. Yet in a great many cases, the cold is entering from elsewhere: the roller shutter box. A few targeted steps and inexpensive materials can substantially improve this weak point – and energy specialists say heating-energy consumption may be cut by up to 20 per cent.

Why the roller shutter box becomes a hidden cold bridge

Roller shutters are generally a useful addition: they provide burglary protection, reduce outside noise and improve a window’s thermal performance. The issue is often not the shutter curtain itself, but the box into which its slats are rolled.

In many older properties, this box is made from thin timber or plastic panels with virtually no insulation. In some cases, only a few millimetres of material separate the indoor space from the outside air. Cold air can then flow straight into the room through joints, gaps and poorly fitting access panels.

“A leaky roller shutter box acts like a small window that is permanently open – invisible, but noticeable on the heating bill.”

Professionals refer to this as a “thermal bridge”: cold external air chills the box and the neighbouring building components. The heating system must work harder to maintain the required room temperature. If a flat has several of these boxes, the effect is clearly noticeable, both in terms of comfort and cost.

How much energy improved insulation can save

The impact of one roller shutter box may initially appear minor. Taken together, however, they create a significant area through which heat can escape. Energy suppliers and refurbishment specialists estimate that targeted insulation of roller shutter boxes can deliver savings of up to one fifth of heating energy, particularly in unrenovated older homes.

• less draught around the window
• more even room temperatures
• a noticeably lower heating requirement
• improved protection from external noise

The advantage is that there is no need to open up walls or fit replacement windows. Existing boxes can be upgraded with manageable effort, usually within an afternoon.

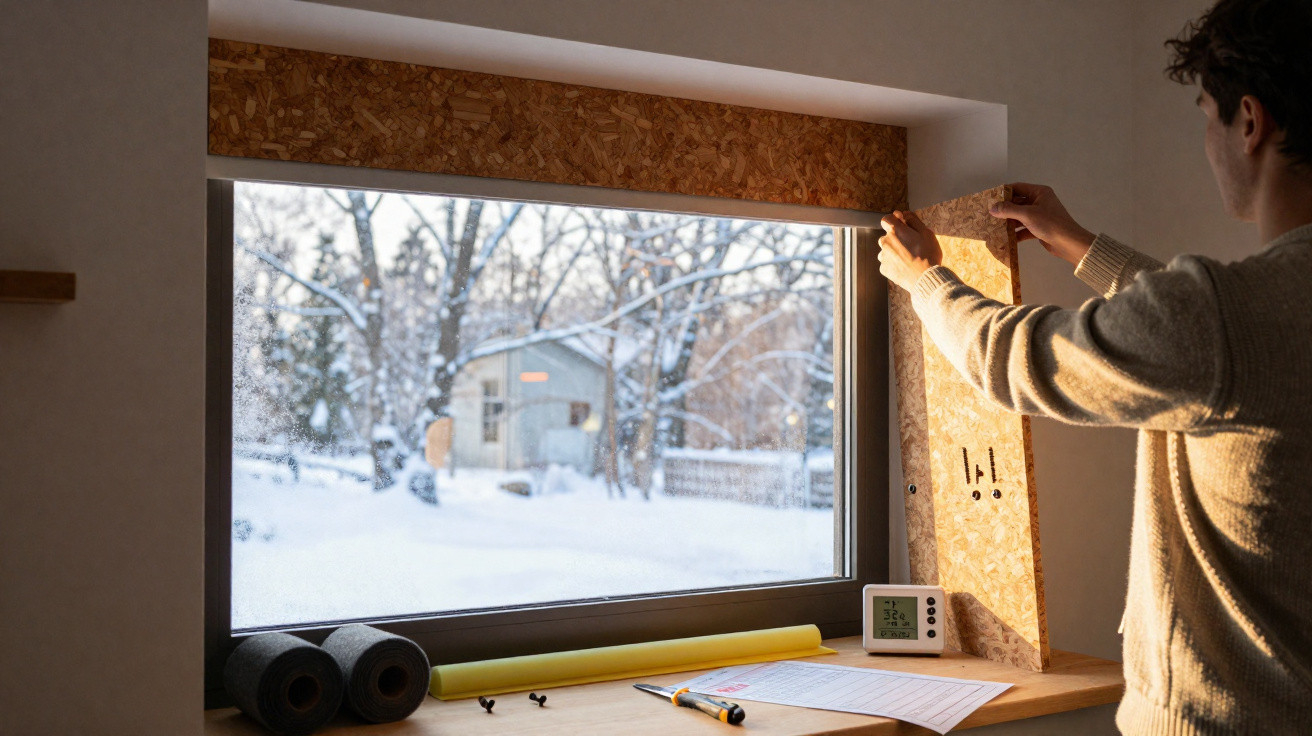

Step by step: insulating a roller shutter box yourself

Safety first: raise the roller shutter and isolate the power

Before starting, raise the roller shutter fully so that the shutter curtain is contained inside the box. For electrically operated systems, then remove the fuse or switch off the relevant circuit breaker. This prevents the motor from moving while you work.

Open the box and check the available space

Depending on the design, the access panel can either be unscrewed or unclipped. Take care not to crack the cover. Then measure the distance between the shaft around which the roller shutter winds and the internal walls of the box.

Space is often limited, so a thick block of insulation may not fit. This is precisely why accurate measurements are worthwhile before buying materials. It is equally important to clean the internal surfaces using a dry cloth or a vacuum-cleaner attachment, so that adhesive and insulation boards will bond properly later.

Insulation materials suitable for roller shutter boxes

Several options are available from retailers that are designed specifically, or are particularly well suited, for insulating roller shutter boxes. They differ in cost, installation effort and additional benefits such as sound insulation.

Natural option: cork boards

Expanded cork is considered a sustainable choice. It is produced from the bark of the cork oak and pressed into boards of varying densities. This makes it possible to install insulation that significantly slows the cold, even where space is restricted.

• effective thermal insulation at a low thickness
• natural, moisture-resistant material
• easy to cut and bond in place

The classic choice: stone wool for narrow boxes

Stone wool, often sold as “mineral wool” in DIY shops, is manufactured from melted rock. It offers good value for money, is non-combustible and copes with moisture better than many other insulation materials. For roller shutter boxes, boards between 2 and 5 centimetres thick are usually sufficient.

Anyone choosing this option should use rigid boards or mats. Loose fibres are impractical in the confined box area and may cause irritation while working. Gloves and long clothing are advisable.

For greater quiet: acoustic insulating foam

On noisy roads or near railway lines, it is worth considering specialist foams that reduce vibration and noise. These materials combine thermal insulation with sound reduction. They are generally available as boards or mats that can be cut to size and glued in place.

Special systems for roller shutter boxes

Manufacturers now offer insulation kits developed specifically for roller shutter boxes. They typically include pre-shaped foam boards with grooves and cut-outs, allowing them to fit neatly around the shaft and box walls.

“For people less confident with DIY, pre-cut insulation kits are often the most convenient option: little cutting, clear instructions and suitable adhesives.”

In many DIY stores, these systems can be found in the windows and doors section. They often include:

• rigid foam boards that are easy to cut
• suitable installation adhesive, often neoprene-based
• sealing profiles or silicone strips for joints

Important: the boards must not obstruct the shaft. Always leave a little clearance when fitting them so the roller shutter can move up and down freely afterwards.

Seals are usually essential

Even the best insulation material loses its effectiveness if the box cover does not close tightly. Small gaps are enough to create a noticeable draught. Silicone or rubber seals close these joints reliably.

How to seal the box correctly

• Check the line of the joints around the access panel.
• Remove old, brittle seals and clean away adhesive residue.
• Trim the new sealing profiles and stick or press them into place.
• Close the panel and check that it sits firmly against the frame.

Where sealing strips are unsuitable, a high-quality silicone can be used instead. It is well suited to closing narrow gaps where the box meets the wall. Take care not to block any ventilation openings specified by the manufacturer.

What these measures change in everyday life

Many residents notice the difference just a few hours after sealing: the familiar cold air currents around the window disappear, and the room air feels more consistent. Radiators no longer need to be turned fully up as often to achieve the same level of comfort.

Those who treat several roller shutter boxes in their home frequently notice:

• considerably fewer draughts in seating and sleeping areas
• smaller temperature differences between the window area and the centre of the room
• less condensation on the glass because the surface cools down less

This work is especially worthwhile in older properties with uninsulated external walls. Roller shutter boxes in these buildings are often poorly constructed, so every improvement has a direct effect on how the room feels.

Practical advice and potential pitfalls

Not every box has the same construction. On very old models, access is sometimes located on the outside of the façade. Anyone who feels unsure on a ladder should bring in a specialist contractor. The same applies if the box is difficult to open or the drive mechanism appears complicated.

In rented accommodation, the owner’s consent is generally required before permanent alterations are made. A short message pointing out the potential heating-cost savings can sometimes persuade landlords more quickly than expected.

One aspect is often underestimated: ventilation. Anyone who seals all leaks in a home must ventilate more consciously so that moisture can escape. Regular rapid airing prevents mould growth and continues to provide a pleasant indoor climate.

Why attention to small details pays off

Major refurbishment projects, such as replacement windows or an insulated façade, are expensive and labour-intensive. Roller shutter boxes are among the building elements where relatively minor work can deliver a surprisingly substantial benefit. Many material kits cost less than a single month’s heating bill and remain effective for years.

For anyone improving their home’s energy performance step by step, these “small jobs” are often the most sensible place to begin. Roller shutter boxes, radiator recesses and gaps around doors all work together. Improving each one a little can significantly reduce energy demand, while making a home feel as warm in winter as the thermostat promises.
